Vanadium Redox Flow Battery (VRFB) technology is a leading solution for long-duration energy storage (4-12+ hours). Its key advantage is the decoupling of power (stack) from capacity (electrolyte volume), enabling cost-effective grid-scale applications. Current development focuses on component optimization and reducing levelized cost of storage (LCOS).

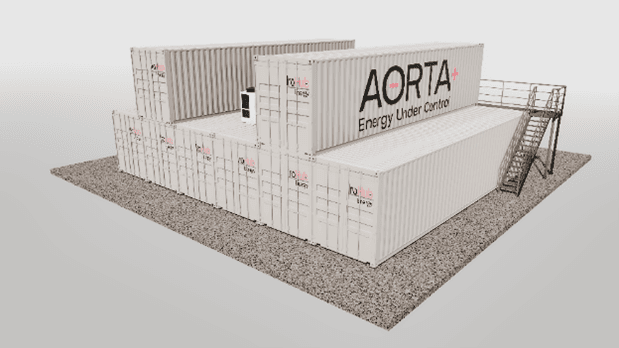

1. System Architecture
- Power (kW) defined by electrochemical stack size
- Energy (kWh) defined by electrolyte volume and concentration
- Optimization of kW/kWh ratio based on application (e.g. PV shifting, peak shaving)
- Trade-off between stack oversizing (efficiency, lifetime) and CAPEX
2. Stack Design & Materials
- Membrane selection balances conductivity, crossover, durability, and cost
- Carbon felt electrode treatment and compression affect efficiency and pressure drop
- Uniform flow distribution required to avoid local degradation
- Shunt current mitigation essential in multi-cell stacks
3. Electrolyte, Tanks and Chemical Window
VRFB uses aqueous solutions of V(II)/V(III) and V(IV)/V(V) pairs in acidic environment:
Design Parameters:
- Vanadium concentration and temperature window – prevention of precipitation (especially V(V) at high SOC and temperature)
- Tank and piping materials resistant to corrosive acidic electrolyte
- Secondary containment systems against leakage
- Vanadium price and volatility remains the main system challenge
Advantages:
- Electrolyte is stable for decades
- Possibility of recycling and rebalancing
4. Hydraulic System: Pumps, Piping and Flow Control
Pumping represents significant parasitic load on the system:
Optimization Goals:
- Minimization of pressure drop through optimized electrode structure and flow fields
- Balancing flow rate for:
- Sufficient reactant supply
- Thermal control
- Low energy consumption
- Acceptable shear stress on electrodes
- Uniform flow distribution across cells and stack
5. Control, Monitoring & Safety
- SOC estimation based on electrolyte condition, not voltage alone
- Active management of flow, temperature, and electrolyte balance
- Integration with EMS and power conversion systems
- Safety focus on leak detection, containment, and fail-safe operation
6. Lifetime, Maintenance & Economics
- Electrolyte and tanks can last decades; stacks are serviceable components
- Design for modularity and ease of maintenance
- CAPEX dominated by electrolyte and BoP rather than stacks alone
- LCOS strongly influenced by utilization profile and vanadium price exposure
Conclusion
VRFB systems require holistic design balancing electrochemical performance, hydraulic efficiency, power electronics, and lifecycle economics. The technology excels in long-duration storage where safety, longevity (20-30 years), and scalability are priorities. Success depends on minimizing LCOS through advanced optimization methods, including machine learning, and careful system integration.
Key Takeaway: VRFB’s decoupled power-energy architecture and inherent safety make it ideal for grid-scale, long-duration applications despite lower energy density compared to Li-ion systems.
